ATLAS PRO
PRODUCTION YEARS
2024 - Current
LATEST SOFTWARE VERSION
Version: 2025.3.28.124
Fixed Issues:
Fixed issue that showed the burn pair option available when the minimum number of lanes was too low.
Fixed issue that would not return you to the pattern volume test screen after selecting a pattern.
Reduced the time to turn off the buffer motor in reverse when completing a lane based on the LDS not pulsing.
Improved logic that manages the floats. Resulting in better reporting of empty tanks.
Fixed issue where error data in machine records and error history did not match.
Fixed issue where auto speed function will adjust and save speeds that are out of range.
Fixed issue where LED oil head tracking effect could get out of sync.
Fixed issue that would cause the telemetry data not to broadcast in some scenarios.
Fixed issue where text on session cards in the Run Machine\Select Lanes screen would not fit properly on the card
Fixed issue when turning the conditioner LED mode off would not save unless you select a color.
Fixed min\max values in dual pattern lane selection.
Fixed issue where pattern info card does not show correct tank information.
Fixed issue with the running screen not changing the pattern logo when running multiple patterns.
Fixed issue that causes errors before there is a connection to the control board when booting.
Fixed issue that will cause an error to be triggered before a user is logged in which caused the LED to change to red with no error popup to dismiss.
Fixed issue caused when you modify the pattern and press “save,” instead of “copy as” which resulted in the machine saving the pattern and modifying the image but not changing the GUID. The pattern library would show the original download as already downloaded, but the pattern in the machine is a modified version.
Fixed issue with K2 cloth not counting properly.
Fixed issue where the mobile app can connect to machine with no onboard user connected. Causing issues with records and data.
Fixed issue that will cause the pause function to not work properly in certain instances.
Fixed issue that will cause the machine to not stop in reverse when manually moving it from the lane to the approach from the move screen.
Fixed issue that will cause the saving changes popup to get stuck in a loop and not close properly.
Fixed issue where the whisker will not operate when the OLS is engaged.
Fixed issue when selecting number of lanes over 46 in the scheduler, causing the estimated runtime to be incorrect.
Fixed issue that can cause the reset cloth from the cleaner compartment button to get stuck resetting the cloth and no longer raise and lower the cloth.
Fixed issue that causes the calibration process to not stop when an error happens.
What’s New:
Update to squeegee wipe distance; forward distance max value now locked to be less than the reverse distance.
Update to the UI to show water before cleaner in Pump Calibration Settings.
Update to the keyboard to include special characters.
Update to improve oil head adjustment UI design in Conditioning Settings to better explain the adjustment values.
Smart Link Desktop:
Fixed issue in Smart Link that didn't show the correct time span for "All Day" setting.
Fixed issue that will cause the lane area\distance to be incorrect when an error is triggered on the lane.
Smart Link Mobile:
Update to include the current lane in the mobile app running screen.
Update to show volume for individual tanks on Atlas Pro.
TRANSFER SYSTEM
DUO Transfer System (roller and single transfer brush)
AVAILABLE UI LANGUAGES
Arabic, Bulgarian, Chinese, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hebrew, Italian, Japanese, Korean, Malay, Norwegian, Polish, Russian, Spanish, Swedish, Thai, Turkish, Ukrainian.
Learn more about ATLAS PRO here.
ATLAS & ATLAS WALKER
PRODUCTION YEARS
2023 - Current
LATEST SOFTWARE VERSION
Version: 2025.3.28.124
Fixed Issues:
Fixed issue that showed the burn pair option available when the minimum number of lanes was too low.
Fixed issue that would not return you to the pattern volume test screen after selecting a pattern.
Reduced the time to turn off the buffer motor in reverse when completing a lane based on the LDS not pulsing.
Improved logic that manages the floats. Resulting in better reporting of empty tanks.
Fixed issue where error data in machine records and error history did not match.
Fixed issue where auto speed function will adjust and save speeds that are out of range.
Fixed issue where LED oil head tracking effect could get out of sync.
Fixed issue that would cause the telemetry data not to broadcast in some scenarios.
Fixed issue where text on session cards in the Run Machine\Select Lanes screen would not fit properly on the card
Fixed issue when turning the conditioner LED mode off would not save unless you select a color.
Fixed min\max values in dual pattern lane selection.
Fixed issue where pattern info card does not show correct tank information.
Fixed issue with the running screen not changing the pattern logo when running multiple patterns.
Fixed issue that causes errors before there is a connection to the control board when booting.
Fixed issue that will cause an error to be triggered before a user is logged in which caused the LED to change to red with no error popup to dismiss.
Fixed issue caused when you modify the pattern and press “save,” instead of “copy as” which resulted in the machine saving the pattern and modifying the image but not changing the GUID. The pattern library would show the original download as already downloaded, but the pattern in the machine is a modified version.
Fixed issue with K2 cloth not counting properly.
Fixed issue where the mobile app can connect to machine with no onboard user connected. Causing issues with records and data.
Fixed issue that will cause the pause function to not work properly in certain instances.
Fixed issue that will cause the machine to not stop in reverse when manually moving it from the lane to the approach from the move screen.
Fixed issue that will cause the saving changes popup to get stuck in a loop and not close properly.
Fixed issue where the whisker will not operate when the OLS is engaged.
Fixed issue when selecting number of lanes over 46 in the scheduler, causing the estimated runtime to be incorrect.
Fixed issue that can cause the reset cloth from the cleaner compartment button to get stuck resetting the cloth and no longer raise and lower the cloth.
Fixed issue that causes the calibration process to not stop when an error happens.
What’s New:
Update to squeegee wipe distance; forward distance max value now locked to be less than the reverse distance.
Update to the UI to show water before cleaner in Pump Calibration Settings.
Update to the keyboard to include special characters.
Update to improve oil head adjustment UI design in Conditioning Settings to better explain the adjustment values.
Smart Link Desktop:
Fixed issue in Smart Link that didn't show the correct time span for "All Day" setting.
Fixed issue that will cause the lane area\distance to be incorrect when an error is triggered on the lane.
TRANSFER SYSTEM
DUO Transfer System (roller and single transfer brush)
AVAILABLE UI LANGUAGES
Arabic, Bulgarian, Chinese, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hebrew, Italian, Japanese, Korean, Malay, Norwegian, Polish, Russian, Spanish, Swedish, Thai, Turkish, Ukrainian.
Learn more about ATLAS and ATLAS Walker here.
FLEX & FLEX WALKER
PRODUCTION YEARS
2013 - 2024
LATEST THOUGHTWARE
F2.7A
(Year Models 2013-2018)
F4.5A
(Year Models 2019-Current)
DISCONTINUED
PRODUCTION YEARS
2013 - 2024
LATEST THOUGHTWARE VERSION
Year Models 2013-2018 - F2.7A
Year Models 2019-Current - F4.5A
TRANSFER SYSTEM
DUO Transfer System (Transfer Brush & Transfer Roller)
AVAILABLE POST-PRODUCTION UPGRADES
None
Learn more about FLEX and FLEX Walker here.
IKON & IKON WALKER
PRODUCTION YEARS
Ikon - 2016 to Current
Ikon Walker - 2019 to Current
LATEST THOUGHTWARE
K3.4A
(Ikon)
IW7.2
(Ikon Walker)
PRODUCTION YEARS
Ikon - 2016 to Current
Ikon Walker - 2019 to Current
LATEST THOUGHTWARE VERSION
Ikon - K3.4A
Ikon Walker - IW7.2
TRANSFER SYSTEM
DUO Transfer System (Transfer Brush & Transfer Roller)
AVAILABLE POST-PRODUCTION UPGRADES
None
Learn more about IKON lane machine here.
Learn more about IKON Walker lane machine here.

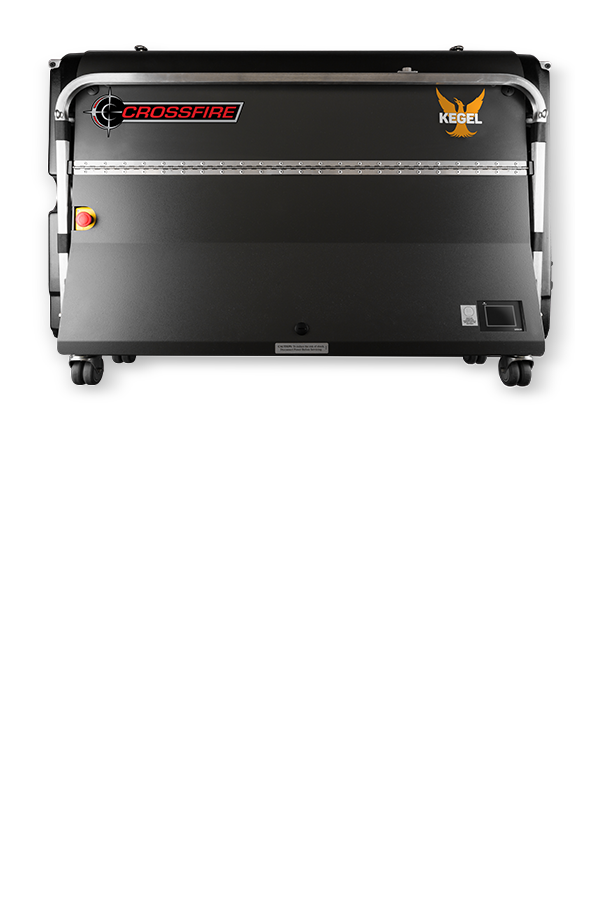

CROSSFIRE
PRODUCTION YEARS
2004 to Current
LATEST THOUGHTWARE
X5.3
(Crossfire with CPM2A PLC)
X5.6
(Crossfire With CP1L)
XF6.2S
(XF With CP1L & Touchscreen)
PRODUCTION YEARS
2004 to Current
LATEST THOUGHTWARE VERSION
Crossfire (with CPM2A PLC) - X5.3
Crossfire (With CP1L PLC) - XF5.6
Crossfire (With CP1L PLC & Touchscreen) - XF6.2S
TRANSFER SYSTEM
Wick Pads
AVAILABLE POST-PRODUCTION UPGRADES
8 Pad Wick & Cam Kit - 158-8214
Conditioner Tank Upgrade - 158-8215 (115V) | 158-8215E (230V)
Learn more about Crossfire lane machine here.
KUSTODIAN WALKER & WALKER SPORT
PRODUCTION YEARS
Kust. Walker - 2006 to 2008
Kust. Walker Sport - 2008 to 2013
LATEST THOUGHTWARE
ZTR4.7
(Kustodian Walker With CPM2A)
ZTR4.9
(Kustodian Walker With CP1L)
M3.3A
(Kustodian Walker Sport)
PRODUCTION YEARS
Kustodian Walker - 2006 to 2008
Kustodian Walker Sport - 2008 to 2013
LATEST THOUGHTWARE VERSION
Kustodian Walker (With CPM2A PLC) - ZTR4.7
Kustodian Walker (With CP1L PLC) - ZTR4.9
Kustodian Walker Sport - M3.3A
KUSTODIAN ION & ION SPORT
PRODUCTION YEARS
Kust. ION - 2005 to 2016
Kust. ION Sport - 2008 to 2013
LATEST THOUGHTWARE
I2.4
(ION)
M3.3A
(ION Sport)
PRODUCTION YEARS
ION - 2005 to 2016
ION Sport - 2008 to 2013
LATEST THOUGHTWARE VERSION
Kustodian ION (With CPM2A PLC) - I2.2
Kustodian ION (With CP1L PLC) - I2.4
Kustodian ION Sport - M3.3A
KUSTODIAN PLUS
PRODUCTION YEARS
2004 to 2016
LATEST THOUGHTWARE
A1
(Kustodian Plus With CPM2A)
A3
(Kustodian Plus With CP1L)
PRODUCTION YEARS
2004 to 2016
LATEST THOUGHTWARE VERSION
Kustodian Plus (With CPM2A PLC) - A1
Kustodian Plus (With CP1L PLC) - A3
PHOENIX-S – Model C
PRODUCTION YEARS
2001 to 2005
LATEST THOUGHTWARE VERSION
Phoenix-S Model C - S3008
STANDARD ELITE
PRODUCTION YEARS
2001 to 2005
LATEST THOUGHTWARE VERSION
Standard Elite - SE1010 ?
KUSTODIAN
PRODUCTION YEARS
2000 to 2004
LATEST THOUGHTWARE
9H
(Kustodian With CPM2A)
9L
(Kustodian With CP1L)
PRODUCTION YEARS
2000 to 2001
LATEST THOUGHTWARE VERSION
Kustodian (With CPM2A PLC) - 9H
Kustodian (With CP1L PLC) - 9L
SANCTION STANDARD
PRODUCTION YEARS
1999 to 2002
LATEST THOUGHTWARE VERSION
Sanction Standard - S3008 or VB818
PHOENIX-S – Model A & B
PRODUCTION YEARS
1995 to 2001
LATEST THOUGHTWARE VERSION
Phoenix-S Model A & B - ST2009
