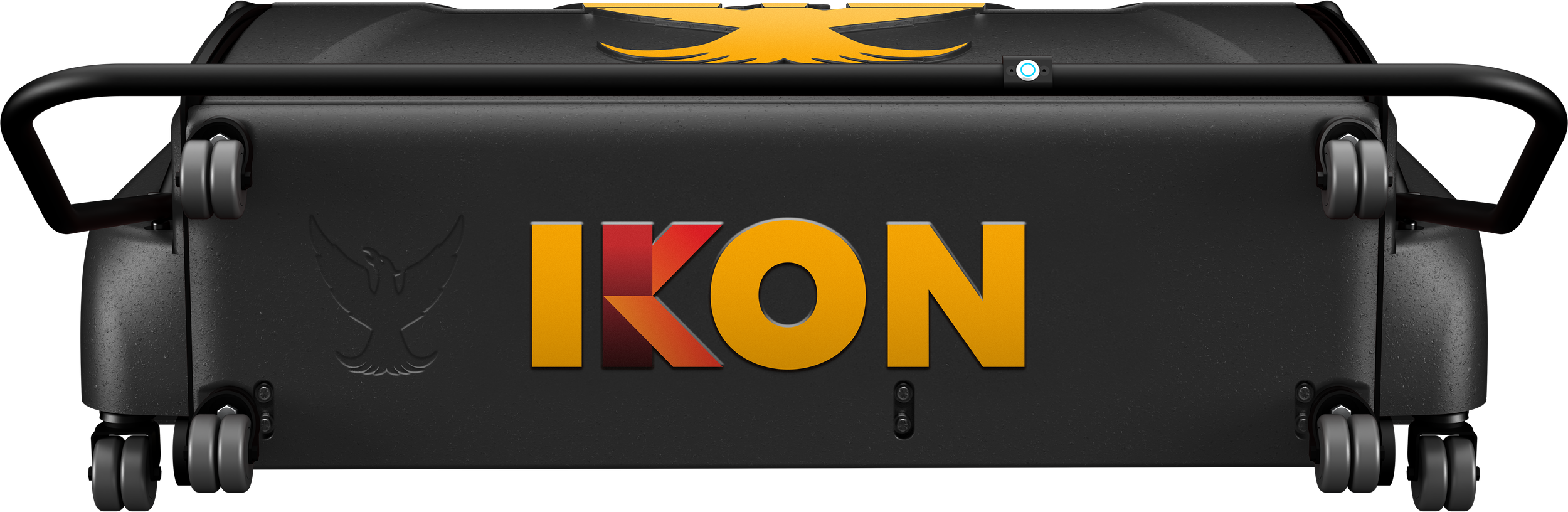

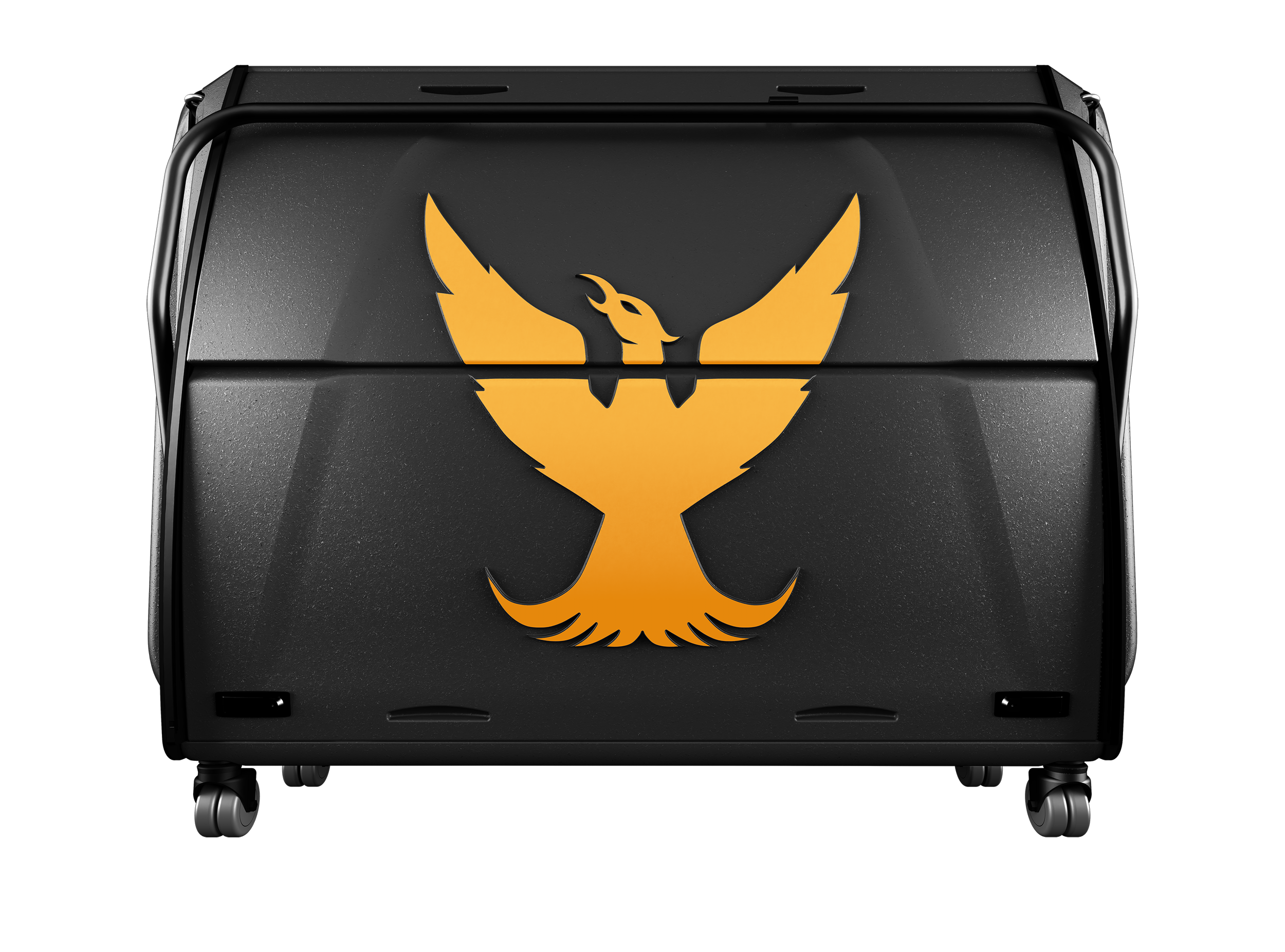

IKON / IKON WALKER

LANE MACHINE

High Tech Made Easy

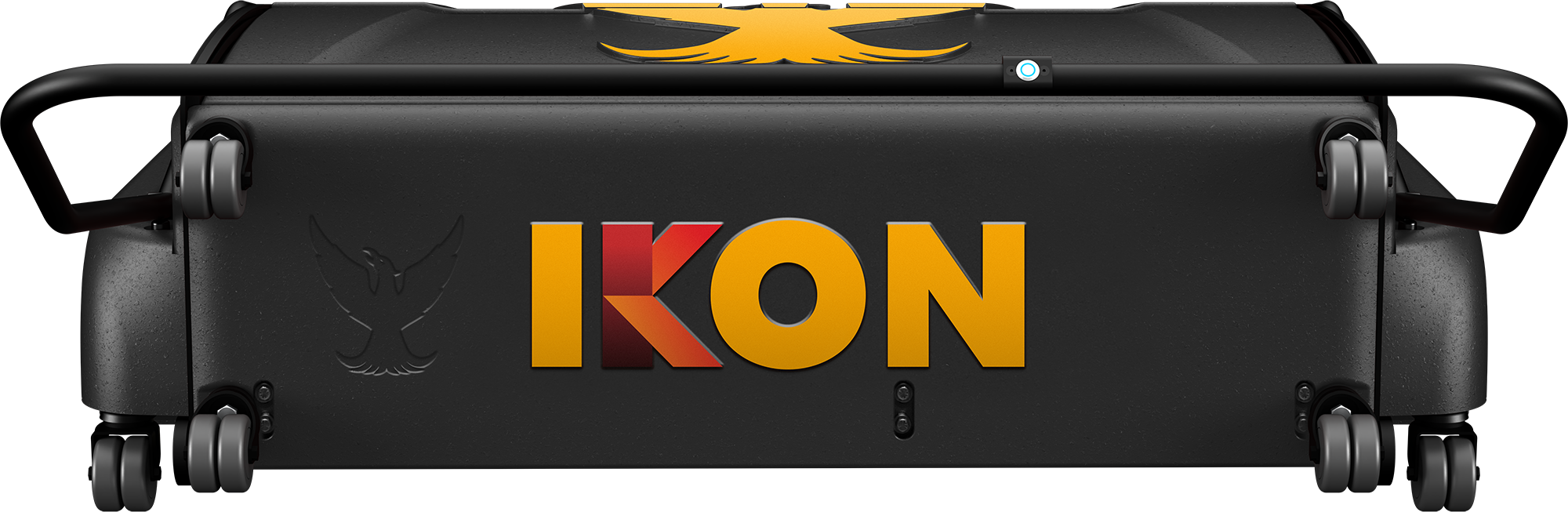

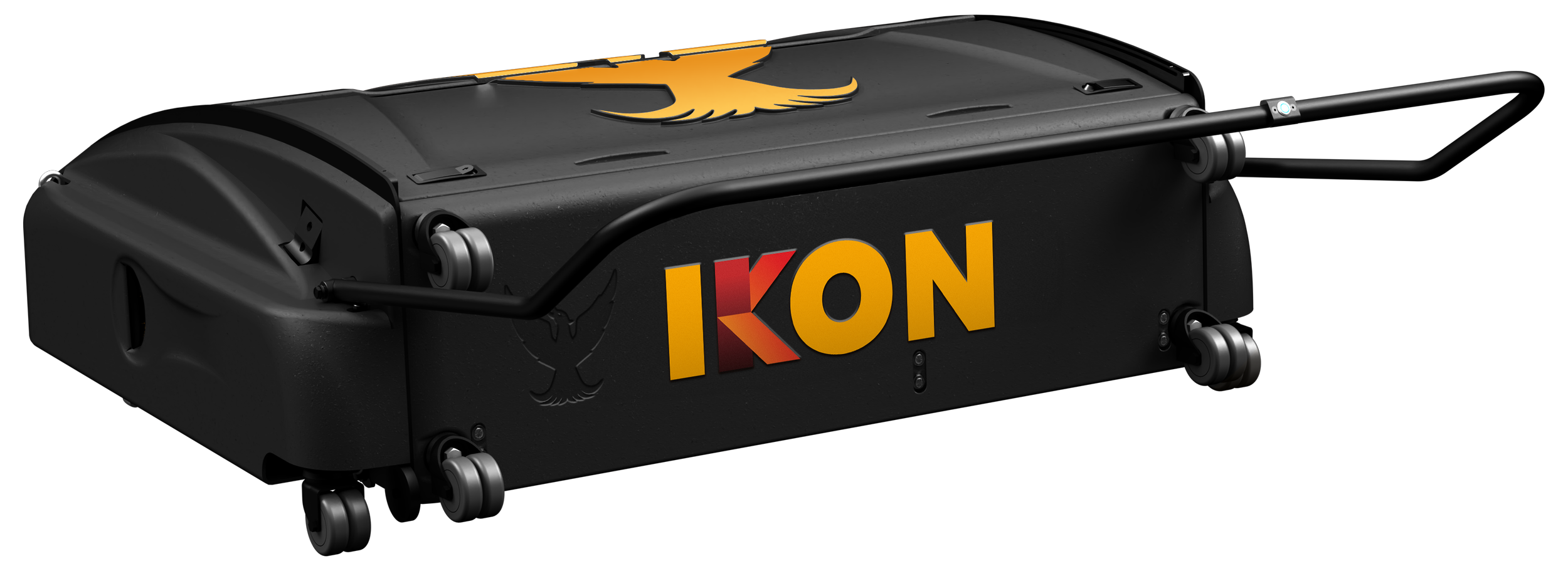

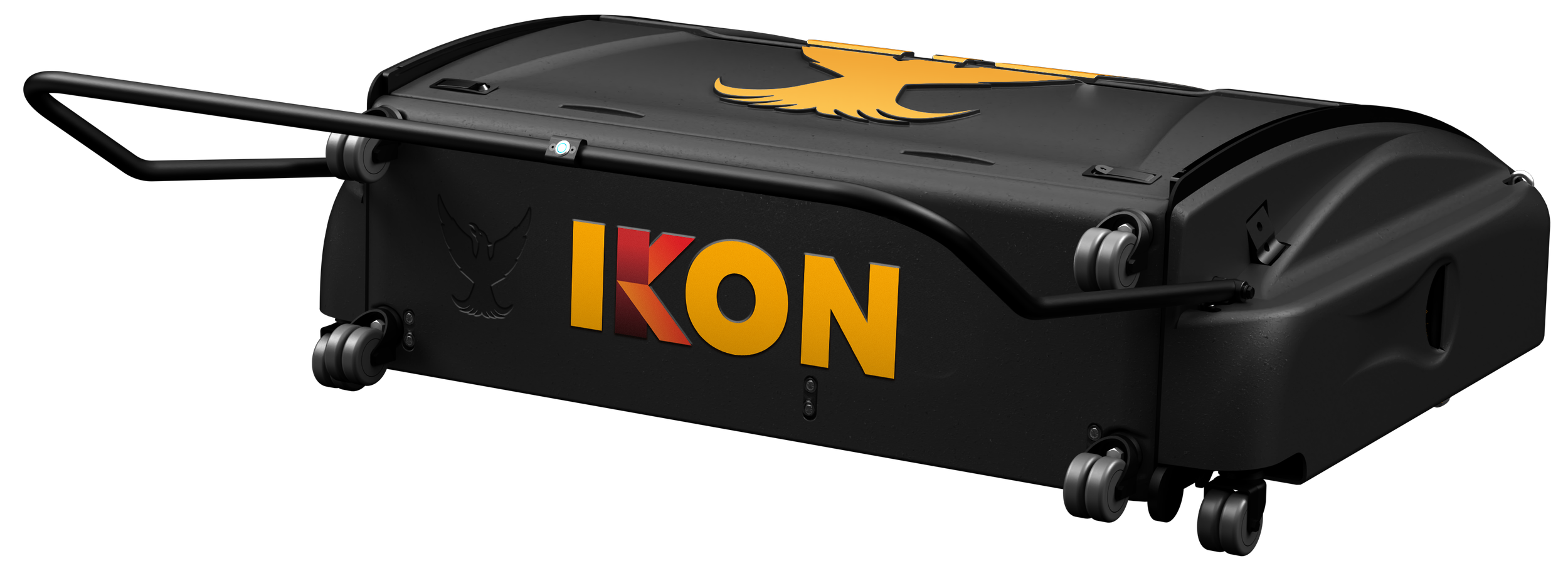

The IKON is a battery-powered combination lane machine (cleans and conditions) that incorporates Kegel's proven technology with the modern styling of the FLEX.

The IKON uses Sanction Technology for the conditioning system, which is reliable, verifiable, and accurate to ±1% with continued precision of ±0.5% after millions of cycles. For cleaning, the IKON utilizes a sprayless system, which cleans the lane without any overspray into the gutters keeping your customers and pinsetters cleaner. Kegel's patented conditioning and cleaner systems are the only ones on the market that can be checked and verified before you begin lane maintenance - now that's peace of mind.

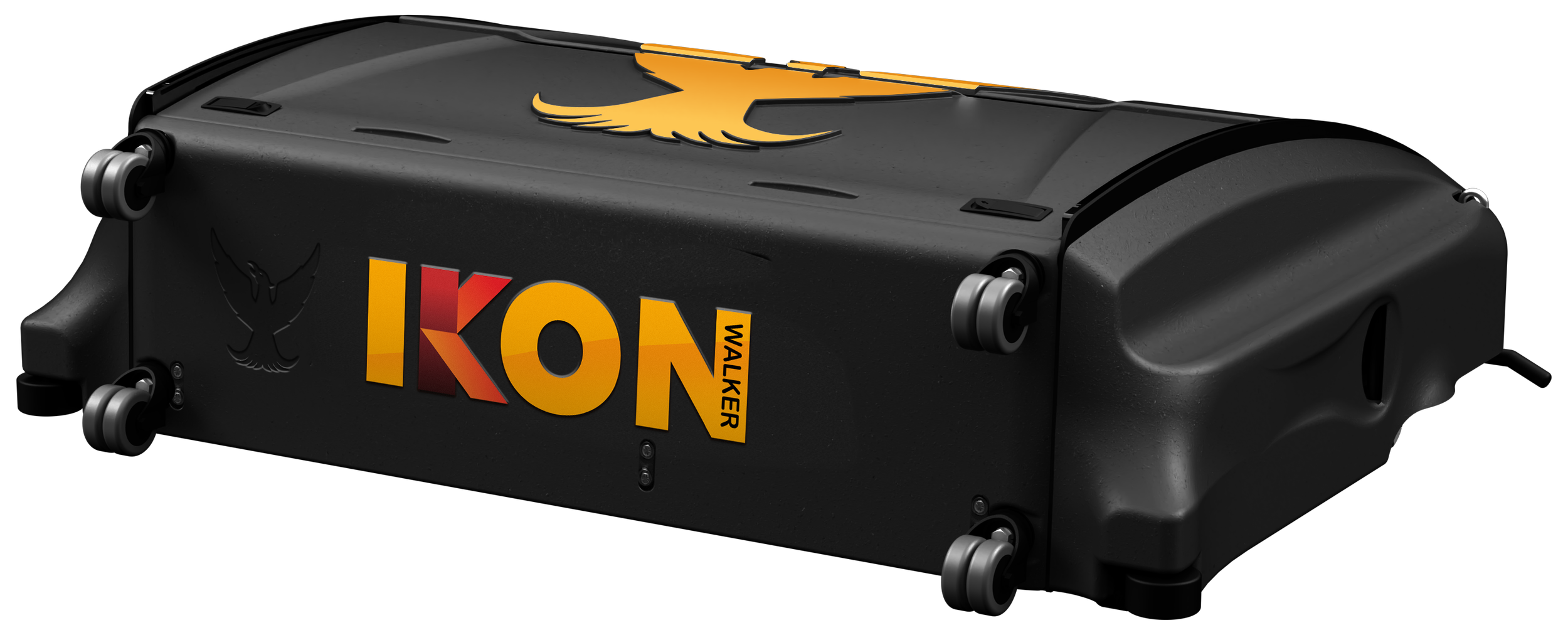

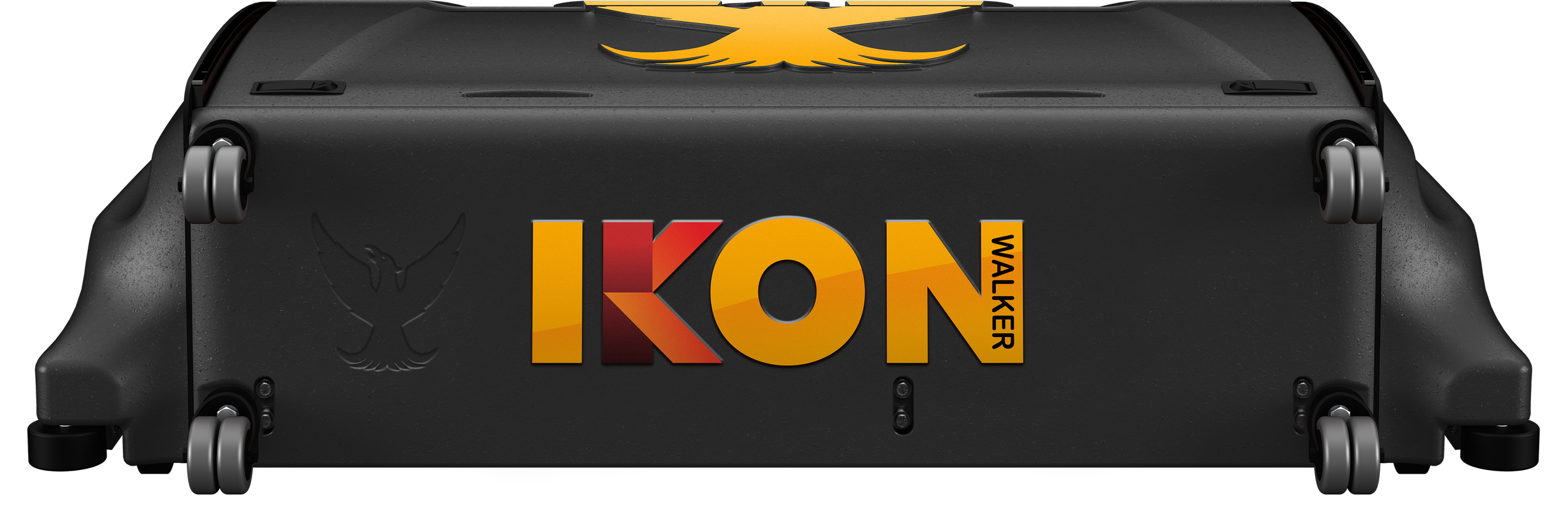

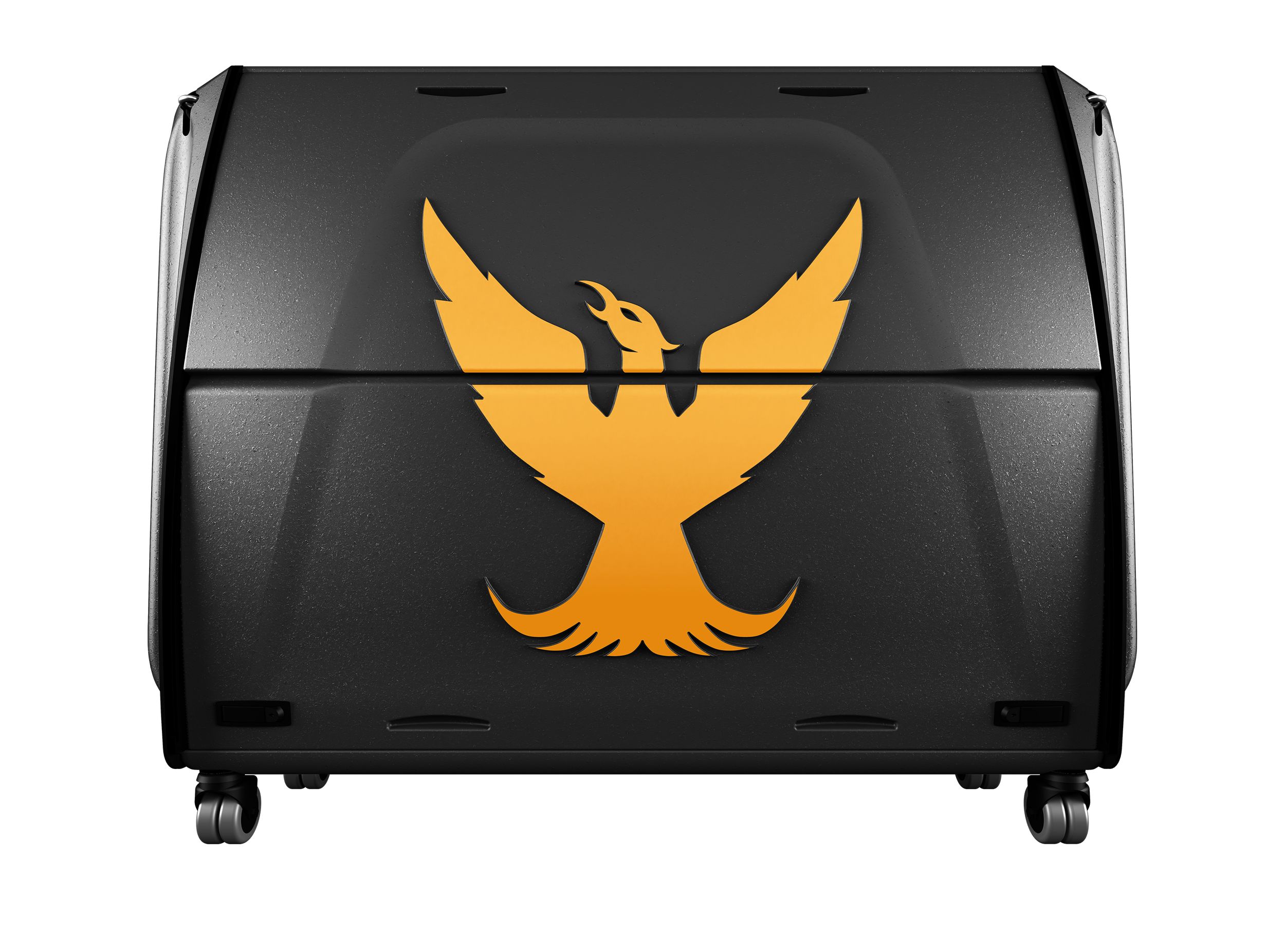

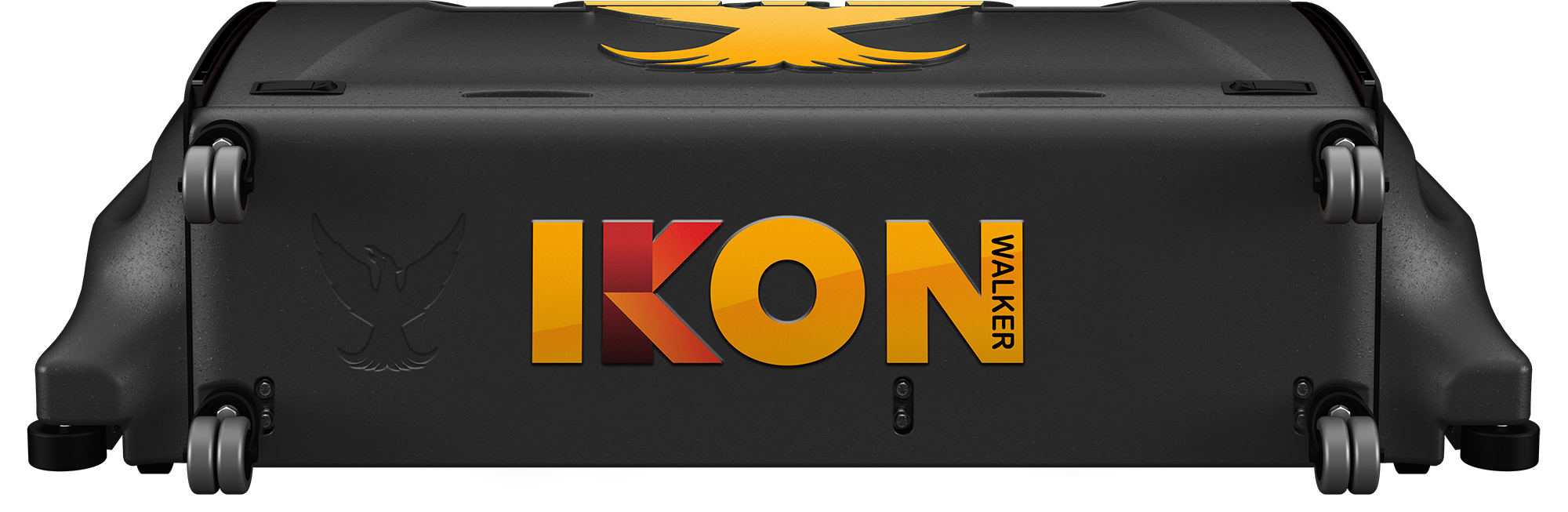

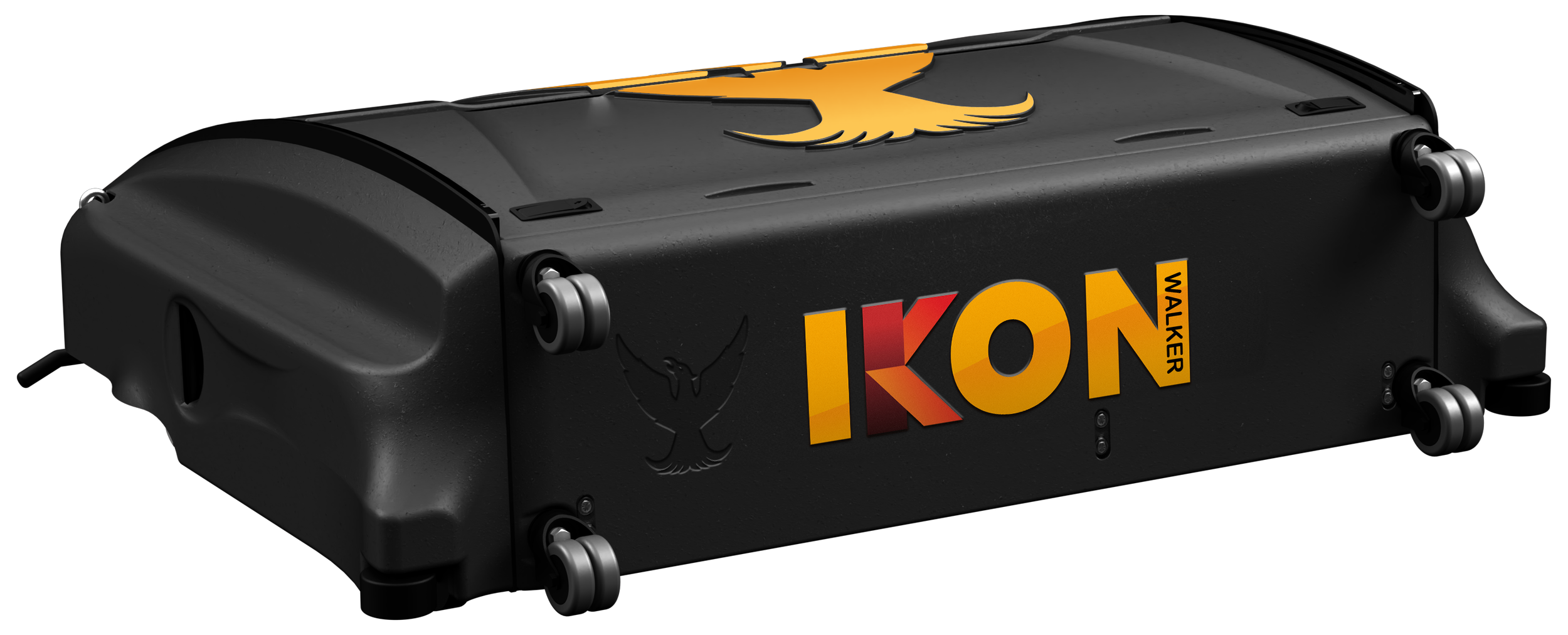

The IKON Walker has the simplicity you love about the IKON Lane Machine, now with the walking capability of the FLEX Lane Machine. The IKON Walker is perfect for those who want a walking lane machine but do not require all the features of the FLEX.

Kegel WalkiNg Lane Machines can give you up to $400 back each week from labor cost

FEATURES

  • Sanction Technology Conditioning System

  • Holds 15 patterns of your choice

  • DUO Transfer System

  • Enhances the smoothness of the pattern

  • Residual oil burns out quickly for easy pattern changes

  • Sprayless Cleaning System

  • Quick change squeegee assembly

  • Easily monitor and adjust cleaner output as desired using the touchscreen

  • Six drive speeds for best taper control

  • 3.5-inch color touchscreen

  • Test input/output menu option

  • Detailed error messages

  • Single lightweight battery

  • External battery charger

  • Two battery options based on the number of lanes run per day


    IKON WALKER:

  • Zero Turn Radius lane-to-lane walking function

  • Auto-aligning lane whiskers

  • Smart processor auto-align memory

  • Object detection

  • Automatic burn pair

TECHNICAL

SPECIFICATIONS

  • Packaging: One machine per crate

  • IKON Part Number:

    • 17-5900 (115V/60 Hz)

    • 17-5950 (230V/50 Hz)

  • IKON weight without the battery:

    • 330 lbs (149.7 Kg)

  • IKON Walker Part Number:

    • 17-6400 (115V/50-60 Hz)

    • 17-6400J (115V/50-60 Hz) - Japanese

    • 17-6450 (230V/50-50 Hz)

  • IKON Walker weight without the battery:

    • 350 lbs (167.8 Kg)

  • Battery Specifications

    • 158-1634B (Orange) 44.4 Ah | 29 lbs (13.1 Kg)

    • 158-1634C (Yellow) 51.2 Ah | 39 lbs (17.6 Kg)

  • Wi-Fi Kit:

    • 164-8821A: WI-FI CONNECTIVITY KIT FOR IKON & 2019+ MODEL FLEX
