KEGEL SMART LANE MACHINEs
KEGEL INTRODUCES ATLAS PRO THE NEWEST ADDITION TO THE SMART LANE MACHINE FAMILY
10" SCREEN
-
DUAL TANKS
-
CLEANER MIXING SYSTEM
-
SMART LINK MOBILE APP INTEGRATION
-
QUICK CHANGE BUFFER BRUSH
-
EASIER MAINTENANCE
-
INTEGRATED WI-FI
-
MULTI-FUNCTION CUSTOMIZABLE LEDS
-
KEGEL SMART LANE MACHINE OS
-
10" SCREEN - DUAL TANKS - CLEANER MIXING SYSTEM - SMART LINK MOBILE APP INTEGRATION - QUICK CHANGE BUFFER BRUSH - EASIER MAINTENANCE - INTEGRATED WI-FI - MULTI-FUNCTION CUSTOMIZABLE LEDS - KEGEL SMART LANE MACHINE OS -
Atlas, the world’s first Smart Lane Machine, has transformed the relationship between machine owners and their lane machines forever. The subtle allure of the Atlas Lane Machine is a tremendous contrast to the power that lives inside. A small custom-built control board, carefully constructed and adapted specifically for lane machines, opened the door for these machines to join Kegel’s budding Smart Ecosystem. The one-of-a-kind Smart Lane Machine Operating System has broken the mold to achieve never-before-seen functionality, communicating seamlessly with an array of Kegel systems. The simplicity, mechanical improvements, and user interface leverage these newfound capabilities, allowing the user an experience beyond compare.
ATLAS PRO

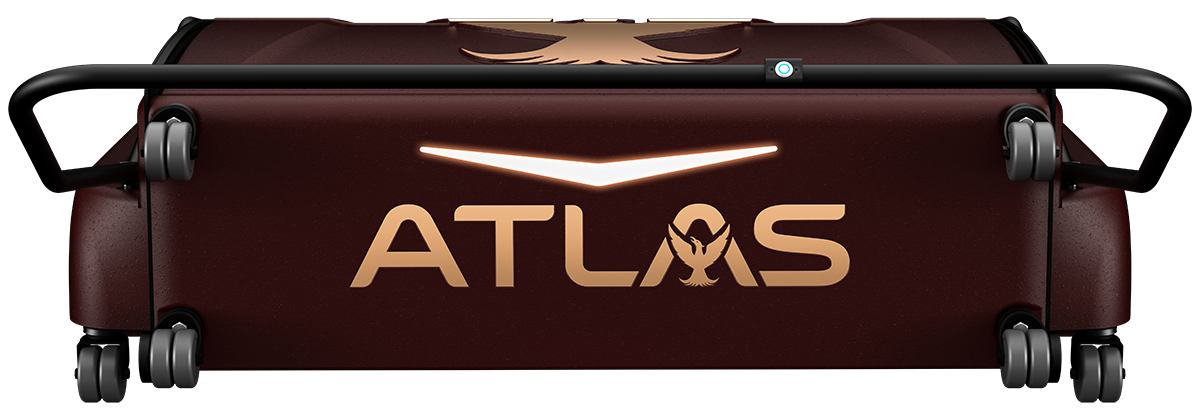

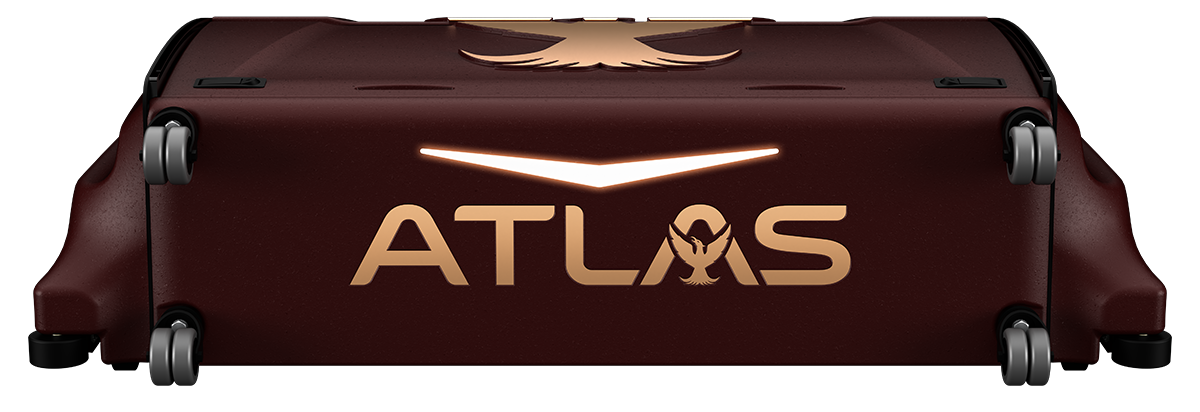

ATLAS WALKER
ATLAS
What is A SMART LANE MACHINE?
A smart lane machine integrates the computer of the machine with communication technology to advance its capabilities. This smart technology allows systems inside and outside of the lane machine to share information and work together to offer more enhanced functionality to the user. Get ready to experience the power of connection.

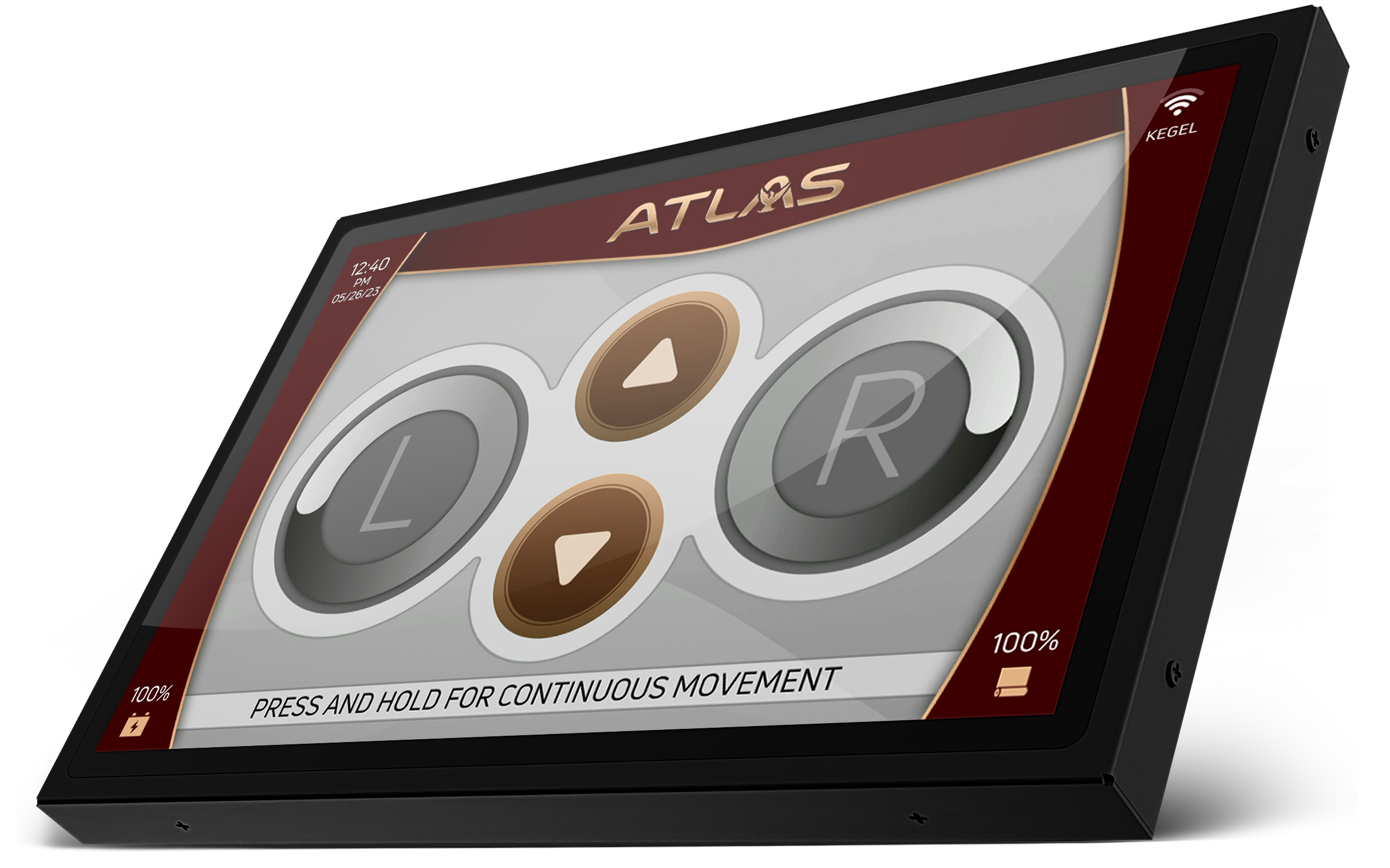

10 INCH TOUCHSCREEN
Easy to use, exciting to look at, and with zero-latency, super quick response to touch. Fitted with a native full HD panel, the monitor delivers superior image quality, vibrant colors and excellent viewing angles.
DUAL TANKS PRO
The conditioning system inside the Atlas combines Sanction Technology with a solid two-tank construction, giving you the benefit of easily using more than one lane conditioner in your center. Use one conditioner for leagues and tournaments, one for open play, or use two conditioners to fine-tune your pattern to your lane surface.
CLEANER MIXING PRO
Simply select your ratio and the machine mixes your cleaner for you automatically with precision and ease. Utilizing individual cleaner and water tanks, the Atlas Pro eliminates the need to measure out your cleaner.
QUICK CHANGE BUFFER BRUSH PRO
The new design of the buffer brush allows you to remove it in seconds. Remove the brush to clean hard to access areas of your machine or even switch between separate brushes for league and tournament play.
VARIABLE BUFFER PRO
Select from a range of buffer motor speeds to customize your pattern. Assign one of four preloaded speeds to each load screen for more control of your oil pattern’s front to back taper.

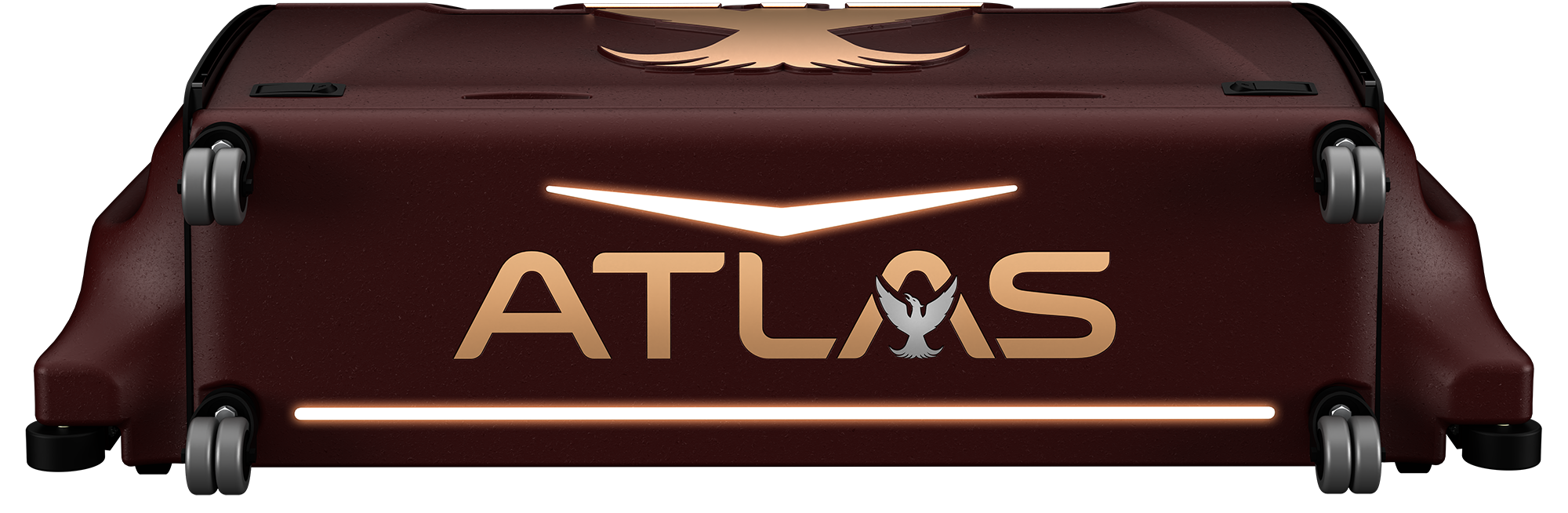

MULTI-FUNCTION CUSTOMIZABLE LEDS PRO
Fitted with a new LED lighting system and tank lights, users can customize their machine to the look they desire.
The lighting system can also be tied to several different functions of the machine such as:
Tracking the oil head as a pattern is applied
Checking the machine battery levels
Monitoring the progress of your oiling session

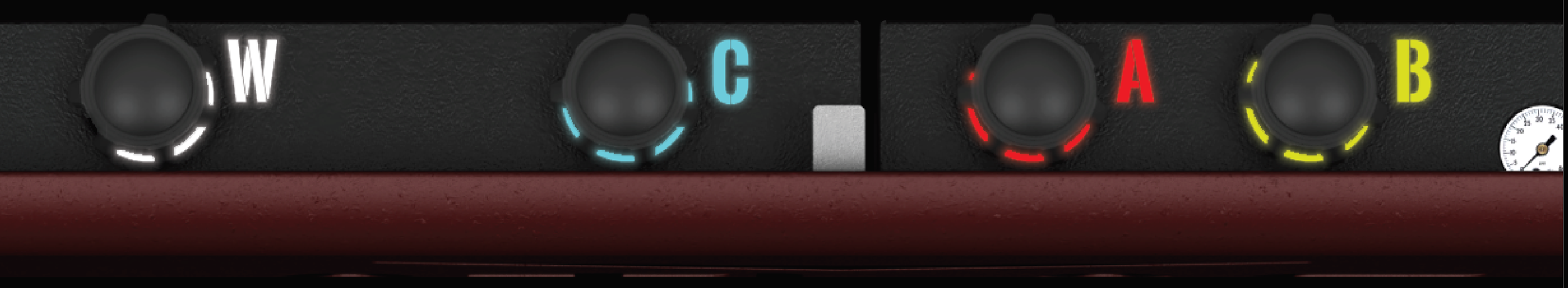

CUSTOMIZABLE TANK LIGHTS PRO
With the new LED tank light system, you have full control to customize each individual tank. Match colors to the product inside for an easy way to identify which tank is which.
ERROR INDICATION SYSTEM
Receive instant visual feedback with our LED system. Colors change to indicate the status of the machine or alert you when an error is triggered.

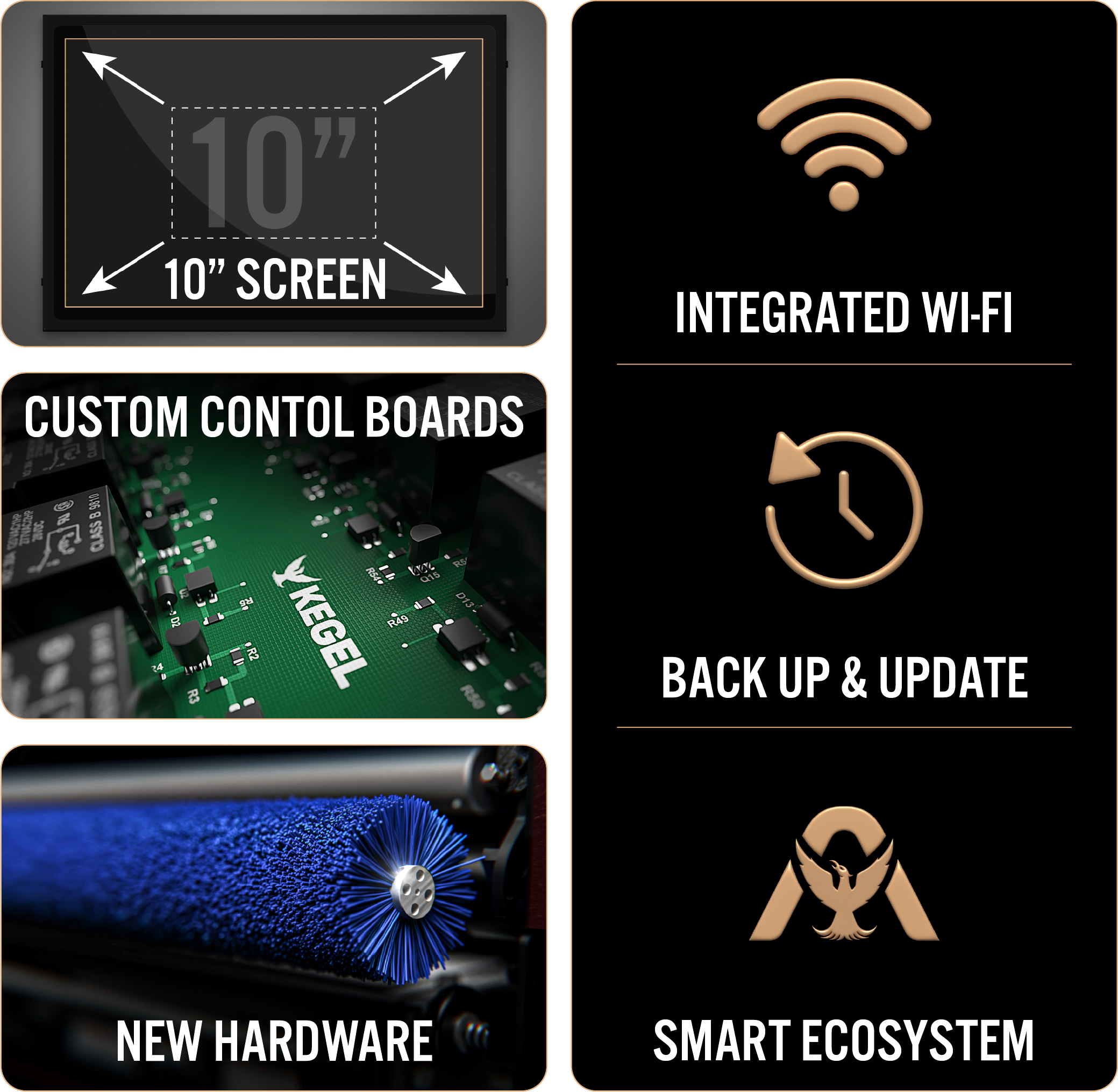

CUSTOM
control BOARDS
These custom-built circuit boards connect the mechanical and electrical systems of your machine to Kegel’s Smart Lane Machine Operating System.

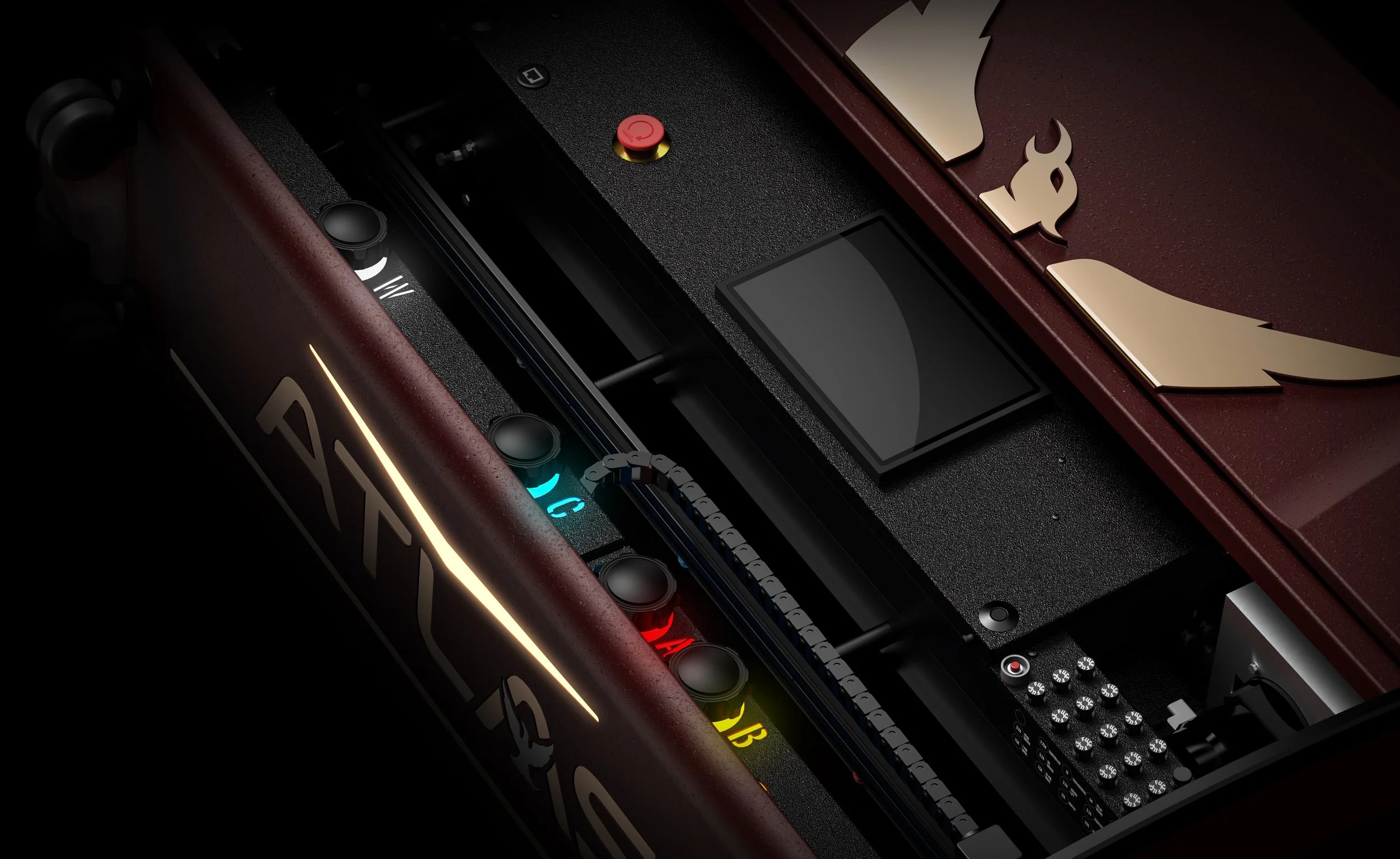

clean interior
The center chassis with minimal exposed wires is the first sign of the comfort and simplicity you will have with the Atlas Smart Lane Machine. Even a new user will feel confident running this lane machine, but don’t be deceived, because this compartment contains the most powerful pieces that make Atlas the first Smart Lane Machine.

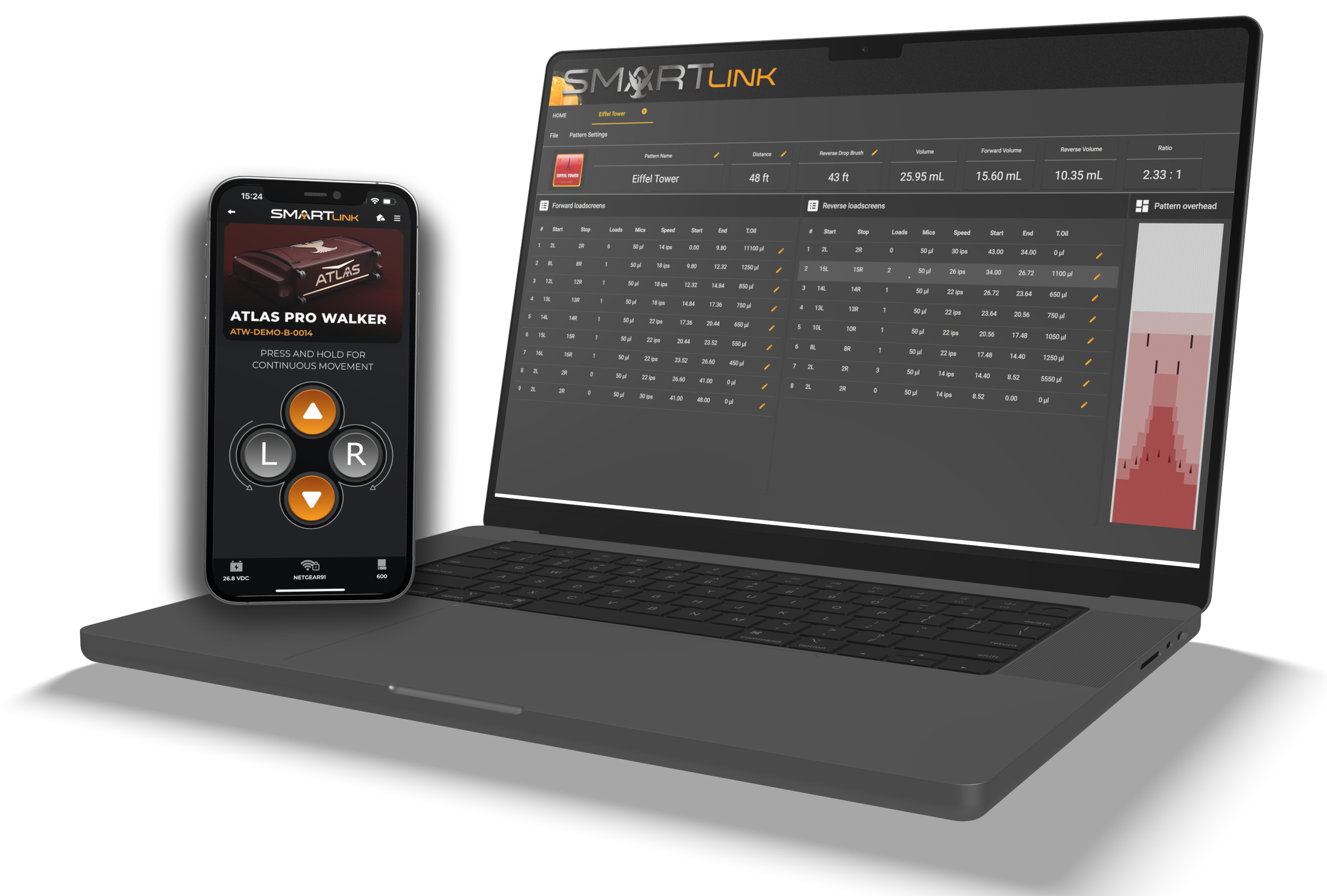

Smart Link is a revolutionary new way to manage your lane machine. Use the desktop or mobile app to adjust your lane machine settings and review detailed information about machine performance. Need troubleshooting or pattern assistance? Allow Kegel or distributor technicians access to your machine via Smart Link to perform machine diagnostics remotely. Settings are easily implemented with the integrated Wi-Fi connection for a smooth and seamless way to be the master of your lane machine.

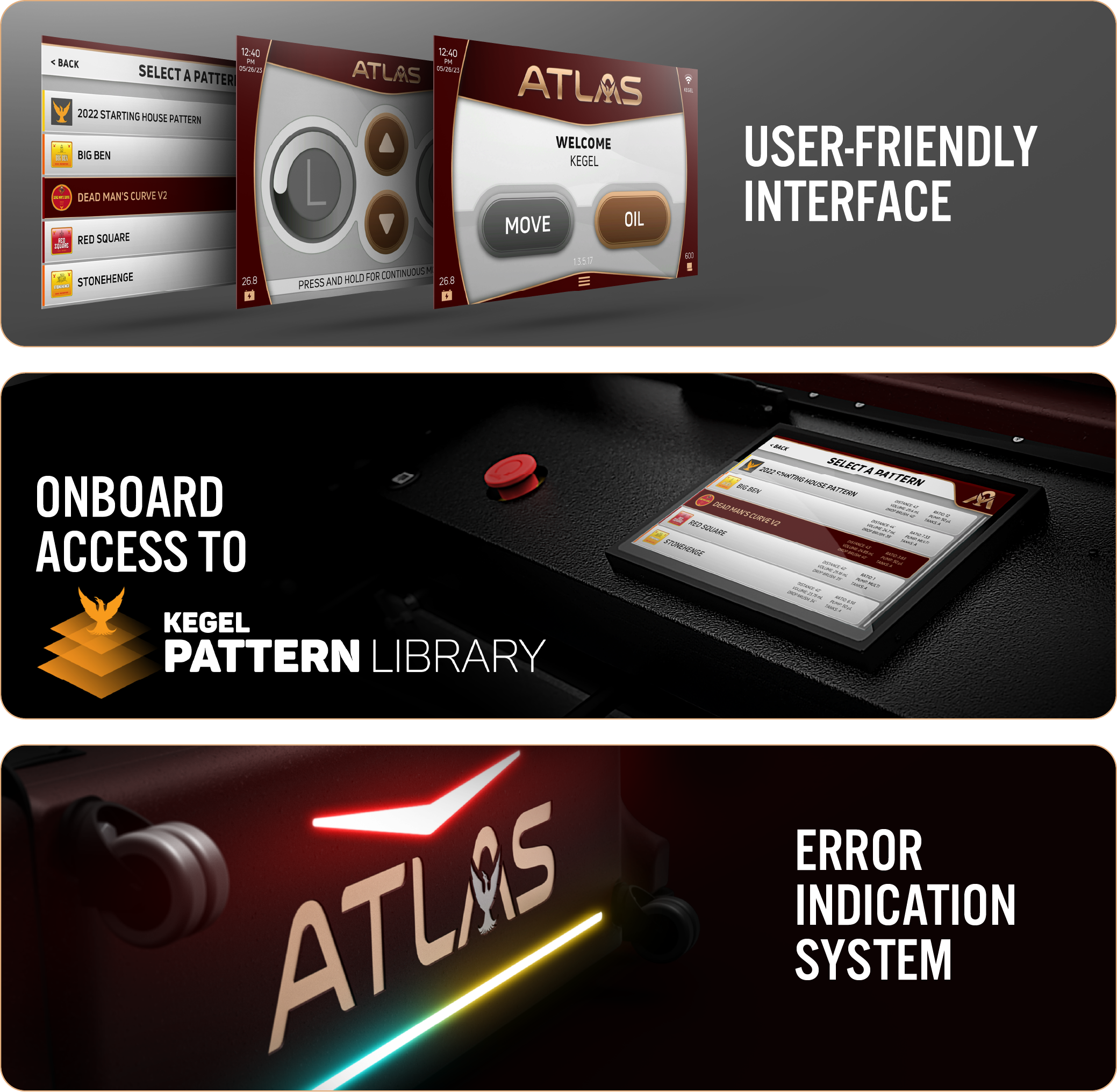

onboard ACCESS TO kegel’s PATTERN LIBRARY
WITH MORE THAN 850 PATTERNS
Experience the pattern library like never before directly from your lane machine. With integrated Wi-Fi, your lane machine can now connect to the Kegel Pattern Library and download any pattern on demand in seconds. No wires are necessary - you are one tap away from your favorite patterns.
Unlimited pattern storage capacity. (PRO)
MOBILE APPS
Use the Smart Link Mobile App for Atlas Pro or Kegel Pattern Library Mobile App to search hundreds of patterns and send them quickly and easily to your Atlas Smart Lane Machines.
EASY TROUBLESHOOTING
Smart, but simple, the Atlas lane machines feature many improvements to aid in the maintenance and troubleshooting process.
Independent drive motors can be easily balanced within the user interface.
Universal speed controls are used throughout the machine for more functionality.
The vacuum motor is simple to remove for maintenance.
Error messages are now tracked and logged per lane.
Relays for different components are independent from each other and can be easily remapped within Smart Link with the help of a Kegel Tech.
Proprietary designed relay board
Chassis style pc plate (centerplate) with minimal exposed wires/connections for a simplified inside look
Extruded aluminum cleaner and oil bar
Omni Wheel for better lane-to-lane transitions*
Independent drive motors and control for easy motor balancing using the user interface*
Front safety object detection*
LED Error Indication System
Quick Change Buffer Brush (PRO)
Solid dual conditioner tanks (PRO)
Independent programmable tank lights (PRO)
Multi-function customizable LEDs (PRO)
*Walker Only
HARDWARE UPDATES
enhanced lane-SKIPPING CAPAbility
TECHNICAL SPECIFICATIONS
ATLAS PRO WALKER
Packaging: One machine per crate
Part Number: 17-6800 (115V/50-60 Hz) - 17-6850 (230V/50-60 Hz)
Weight without the battery: 390 lbs. (177 kg)
ATLAS WALKER
Packaging: One machine per crate
Part Number: 17-6600 (115V/50-60 Hz) - 17-6650 (230V/50-60 Hz)
Weight without the battery: 365 lbs. (165.6 kg)
ATLAS
Packaging: One machine per crate
Part Number: 17-6500 (115V/50-60 Hz) - 17-6550 (230V/50-60 Hz)
Weight without the battery: 331 lbs. (150.1 kg)
Battery Specifications for all Atlas Lane Machines:
158-1634B (Orange)
44.4 Ah | 29 lbs. (13.1 kg)
158-1634C (Yellow)
59.2 Ah | 39 lbs. (17.6 kg)
KEGEL’S ONLINE KNOWLEDGE BASE
Kegel just launched an online knowledge base where you can find our lane machine operation manuals. The site will provide you with the latest updated content with searchable and shareable options.
Check our available online lane machine operation manuals!
